Types of Containers

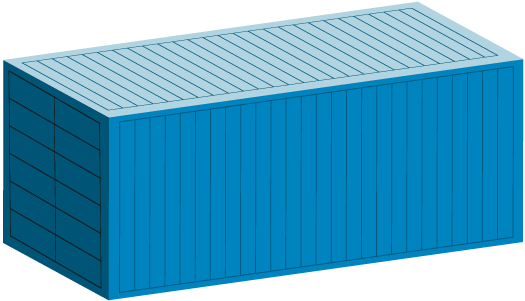

STANDARD CONTAINER

For any type of general cargo, it can store up to 26,000 kg

SIZE	LONG	WIDTH	HEIGHT	MAXIMUM LOAD	VOLUME
20′	5.902 mts.	2.35 mts.	2.39 mts.	28.120 kg.	33.30 CBM.
40′	12.032 mts.	2.35 mts.	2.39 mts.	30.140 kg.	67.70 CBM.

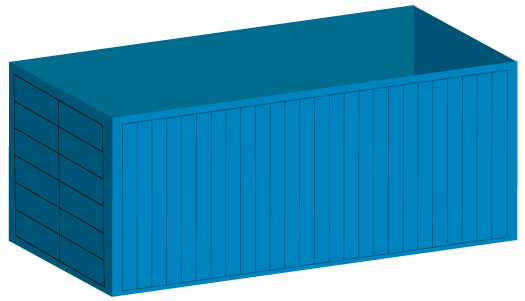

OPEN-TOP CONTAINER

With removable canvas on top. Specially designed for tall loads that can be loaded from the top or with the door open, e.g., marble, machinery, etc.

SIZE	LONG	WIDTH	HEIGHT	MAXIMUM LOAD	VOLUME
20′	5.89 mts.	2.34 mts.	2.34 mts.	28.120 kg.	32.4 CBM.
40′	12.02 mts.	2.34 mts.	2.34 mts.	30.140 kg.	65.7 CBM.

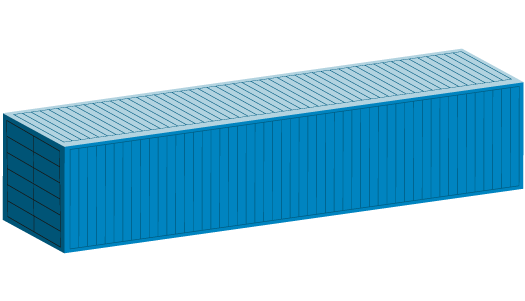

40' HIGH CUBE CONTAINER

Specially designed for bulky cargo, it differs from the standard 40′ container because it is taller (see table below).

SIZE	LONG	WIDTH	HEIGHT	MAXIMUM LOAD	VOLUME
40′ HC	12.033 mts.	2.35 mts.	2.695 mts.	28.560 kg.	76.40 CBM.

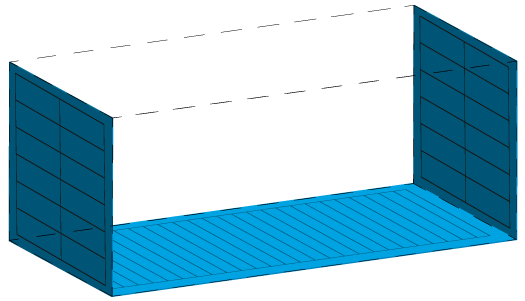

FLAT RACK

Specially designed for heavy, wide, and oversized loads.
Examples: machinery, etc.

SIZE	LONG	WIDTH	HEIGHT	MAXIMUM LOAD	VOLUME
20′	5.89 mts.	2.39 mts.	2.31 mts.	28.470 kg.	32.4 CBM.
40′	12.06 mts.	2.36 mts.	1.94 mts.	40.000 kg.	65.7 CBM.

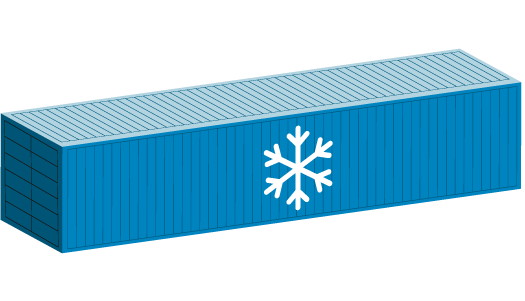

REFRIGERATED CONTAINER / 40'NOR

Specially designed for cargo requiring constant temperatures. Temperature regulation via the container’s own refrigerator.

SIZE	LONG	WIDTH	HEIGHT	MAXIMUM, LOAD	VOLUME
20′	5.46 mts.	2.24 mts.	2.22 mts.	22.53 kg.	–
40′	11.55 mts.	2.25 mts.	2.21 mts.	27.96 kg.	58.70 CBM.

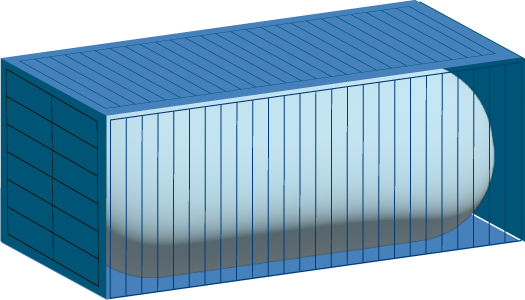

TANK CONTAINER

Specially designed for transporting liquid substances, from hazardous materials such as toxic chemicals and fuels, to milk, oils, and beer.

SIZE	LONG	WIDTH	HEIGHT	MAXIMUM LOAD	VOLUME
20′	–	–	–	27.41 kg.	3.070 mts.
